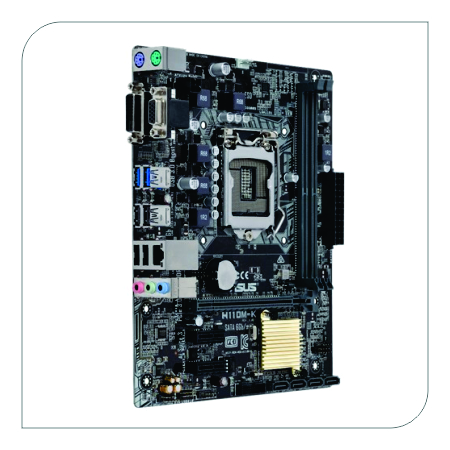

ASUS H110M-K

Descripción

• CPU
  Intel® Socket 1151 for 6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H110
• Memoria
  2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• Gráficos
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : DVI-D/RGB ports
  – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Slots de Expansión
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  2 x PCIe 2.0 x1
• Almacenamiento
  Intel® H110 chipset :
  4 x SATA 6Gb/s port(s), gray
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *¹
  – Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
  – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Puertos USB
  Intel® H110 chipset :
  6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)
  Intel® H110 chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
• Caracteristicas Especiales
  ASUS 5X Protection II :
  – ASUS LANGuard – 2.5X higher surge tolerance
  – ASUS Overvoltage Protection – World-class circuit-protecting power design
  – ASUS DIGI+ VRM – Phase digital power design
  – ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
  – ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability
  ASUS EPU :
  – EPU
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger
  – Anti-Surge
  – USB 3.0 Boost
  – Disk Unlocker
  – Mobo Connect
  – PC Cleaner
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design Heat-sink solution
  – ASUS Fan Xpert
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  – Push Notice
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows 7 , 32bit/64bit
  Windows® 10 64bit
  Windows® 8.1 64bit
• Puertos I/O Traseros
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1 (blue) Type-A
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O
  1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
• Accessorios
  User’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, BIOS multilingüe, ASUS EZ Flash 3,
  CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 Mis favoritos, Notas rápidas, Últimos registros,
  F12 PrintScreen e información de memoria ASUS DRAM SPD (Serial Presence Detect)
• Capacidad de gestión
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Disco Soporte
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Factor de forma
  mATX Form Factor
  8.9 inch x 7.2 inch ( 22.6 cm x 18.3 cm )
• Nota
  *1: Emplea un chasis con módulo de audio HD frontal para disfrutar de los 8 canales de audio
  *2: Visita el sitio web de ASUS, descarga la guía de instalación Windows 7 y el instalador ASUS EZ para instalar Windows® 7.
